Lima Locomotive Works, Inc.

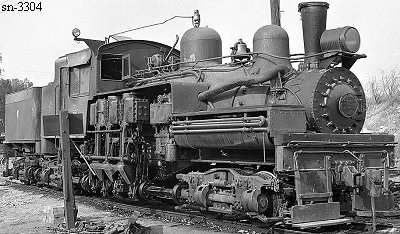

Photo Credit:
Martin E. Hansen collection (7-20-1947)
Shop Number 3304 - Built for: Charles R. McCormick Lbr. Co.
{2,719th Lima Built Shay}
Built:
5-26-1926
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

6.79
Maximum
Safe Speed:

19.0
Fuel Type:
Oil
Fuel Capacity:
1,300 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
148,000
Owners:
Charles R. McCormick Lbr. Co. #201, Quilcene, WA
(7-20-1936) Columbia Construction Co., #201, Westport, WA
(8-12-1942) Columbia Construction Co. #201,Vail, CA
(7-1946) Columbia Construction Co. #960, Declezville, CA
Disposition: Scrapped
Additional Notes:
