Lima Locomotive Works, Inc.

Photo Credit:
Both: George R. Kadelak collection (BP 2-1927)

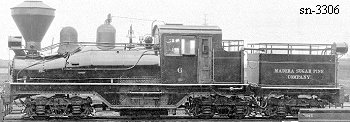

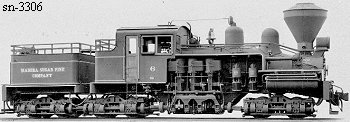

Shop Number 3306 - Built for: Madera Sugar Pine Co.
{2,721st Lima Built Shay}
Built:
2-5-1927
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

5.23
Maximum
Safe Speed:

15.1
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
115,500
Owners: (Includes new data after 2018 Shay book completed)
Madera Sugar Pine Co. #6, Madera, CA
(11-13-1935) Feather River Lbr. Co. #6, Delleker, CA
(3-30-1943) Hyman-Michaels Co. (D), San Francisco, CA
((2-10-1947) Michigan-California Lbr. Co. #6 (3rd), Camino, CA
(1951) Hyman-Michaels Co. (D), San Francisco, CA
Disposition: (6-1951) Scrapped
Additional Notes:
