Lima Locomotive Works, Inc.
Photo Credit:

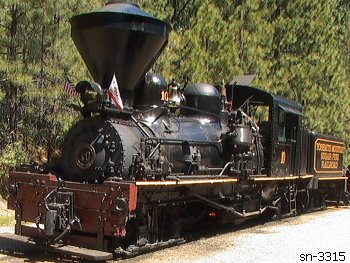

Left: By Ward Dosscer

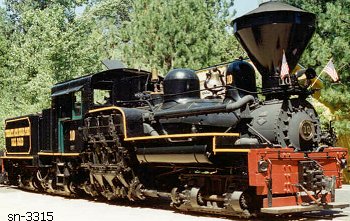

Right: Robert Weed
Shop Number 3315 - Built for: Pickering Lbr. Co.
{2,730th Lima Built Shay}
Built:
3-2-1928
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.53
Wheel Dia.:
34"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
32,162 Lbs.
 Factor of
Adhesion:
5.28
Maximum
Safe Speed:
18.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,420 Gallons
Empty Weight:
As built
140,700
Owners:
Pickering Lbr. Co. #10, Tuolumne, CA
(7-1934) West Side Lbr. Co. #10, Tuolumne, CA
(1966) Yosemite Mountain Sugar Pine RR #10, Swiss Melody Inn, Fish Camp, CA
Disposition: operational @ Yosemite Mountain Sugar Pine RR, Swiss Melody Inn, Fish Camp, CA
Additional Notes:
SLc Survivor List
