Lima Locomotive Works, Inc.

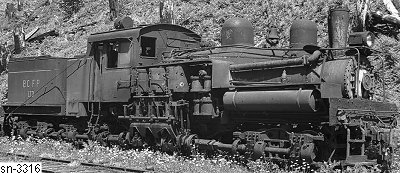

Photo Credit:
Martin E. Hansen collection (4-26-1957)
Shop Number 3316 - Built for: Weyerhaeuser Tbr. Co.
{2,731st Lima Built Shay}
Built:
2-16-1928
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
36,183 Lbs.
 Factor of
Adhesion:
4.86
 Maximum
Safe Speed:
17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
158,400
Owners:
Hofius Steel & Equip. Co.(D), Seattle, WA
Weyerhaeuser Tbr. Co. #5 (2nd), Vail, WA
(1-1947) British Columbia Forest Products, Ltd. #4, Youbou, BC, CAN
Disposition: (10-1959) Scrapped
Additional Notes:
