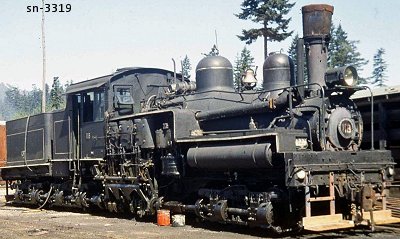

Lima Locomotive Works, Inc.

Photo Credit:
by unknown (1958)
Shop Number 3319 - Built for: Lima Locomotive Works, Inc.
{2,734th Lima Built Shay}
Built:
5-5-1928
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
38,183 Lbs.
 Factor of
Adhesion:
4.91
 Maximum
Safe Speed:
17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
160,000
Owners:
Lima Locomotive Works, Inc., Lima, OH, built for stock
Hofius Steel & Equip. Co. (D), Seattle, WA
Cascade Tbr. Co. #109, Selleck, WA
(10-6-1941) St. Paul & Tacoma Lbr. Co. #12, Ohop, WA
(1950) Bloedel, Stewart & Welch Ltd. #29, Franklin River, BC, CAN
Canadian Forest Products Ltd. #29 later #118, Englewood, BC, CAN
Disposition: (3-1961) Scrapped
Additional Notes:
