Lima Locomotive Works, Inc.

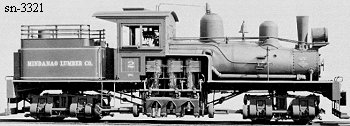

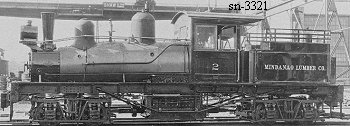

Photo Credit:
Both: George R. Kadelak collection (BP 5-1928)
Shop Number 3321 - Built for: Mindanao Lbr. Co.
{2,736th Lima Built Shay}
Built:
5-2-1928
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.43
 Maximum
Safe Speed:
16.8
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
65,000
Owners: (Includes new data after 2018 Shay book completed)
Pacific Commercial Co. (D), New York City, NY
Mindanao Lbr. Co. #2, Zamboanga, Mindanao, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
