Lima Locomotive Works, Inc.

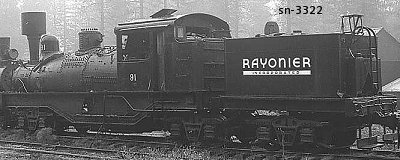

Photo Credit:
Left: Martin E. Hansen collection
Right: George R. Kadelak collection (BP 10-1928)
Shop Number 3322 - Built for: Polson Log. Co.
{2,737th Lima Built Shay}
Built:
10-1-1928
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
38,183 Lbs.
 Factor of
Adhesion:
4.91
Maximum
Safe Speed:
17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
160,200
Owners:
(10-1-1928 ) Hofius Steel & Equip. Co. (D), Seattle, WA
(11-18-1928) Polson Log. Co. #91, Railroad Camp, WA
(1948) Rayonier Inc. #91, Railroad Camp, WA
(1958) Georgia-Pacific #91, Oroville, CA
(1958) Feather River RY #91, Feather Falls, CA, for parts
Disposition: (1965) Scrapped Feather Falls, CA
Additional Notes:
