Lima Locomotive Works, Inc.

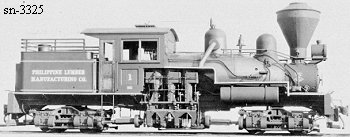

Photo Credit:
Both: George R. Kadelak collection (BP 9-1928)
Shop Number 3325 - Built for: Philippine Lbr. Mfg. Co.
{2,740th Lima Built Shay}
Built:
9-28-1928
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
42"
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
6.04
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
86,800
Owners: (Includes new data after 2018 Shay book completed)
Pacific Commerical Co. (D), New York City, NY
Philippine Lbr. Mfg. Co. #1, Catabangan, Luzon, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes: Operations will be at Catabangan, Camarines Sur, P. I.
