Lima Locomotive Works, Inc.

Photo Credit:
Sandy Macham collection

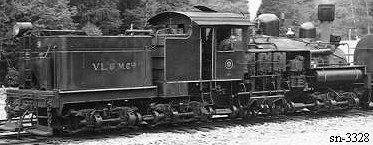

Shop Number 3328 - Built for: Victoria Lbr. & Mfg. Co.
{2,743rd Lima Built Shay}
Built:
1-29-1929
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
38,183 Lbs.
 Factor of
Adhesion:
4.85
 Maximum
Safe Speed:
17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
157,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Victoria Lbr. & Mfg. Co., Ltd. #9, Chemainus, BC, CAN
(5-9-1944) Victoria Lbr. Co., Ltd. #9 later (in 1950) #1099, Chemainus, BC, CAN
(10-1-1951) MacMillan & Bloedel Ltd. #1099, Nanaimo Lakes, BC, CAN
Disposition: (1953) Scrapped
Additional Notes: (1950) Victoria Lbr. Co., Ltd. Shays renumbered when radios were added
