Lima Locomotive Works, Inc.
Photo Credit:

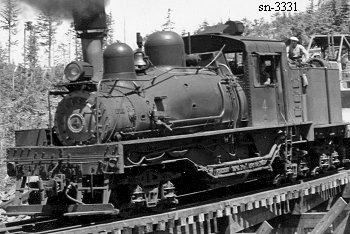

Left: by John Krause

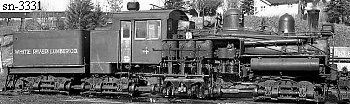

Right: Martin E. Hansen collection
Shop Number 3331 - Built for: Lima Locomotive Works, Inc.
{2,746th Lima Built Shay}
Built:
3-22-1929
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
38,183 Lbs.
 Factor of
Adhesion:
4.95
 Maximum
Safe Speed:
17.6
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
161,500
Owners:
Lima Locomotive Works, Inc., Lima, OH, built for stock
Hofius Steel & Equip. Co. (D), Seattle, WA
(1929) Shaw-Bertram Lbr. Co. #4, Kirk, OR
(1-28-1936) White River Lbr. Co. #4, Enumclaw, WA
(1949) Weyerhaeuser Tbr. Co., #4, Enumclaw, WA
Disposition: (1955) Scrapped
Additional Notes: (1949) Weyerhaeuser Timber Co. became parent company of White River Lbr. Co., Enumclaw, WA, who continued using the Shay.
