Lima Locomotive Works, Inc.

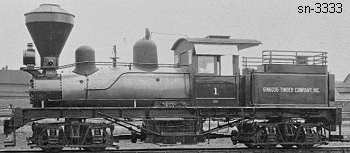

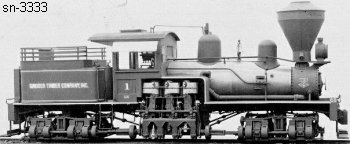

Photo Credit:
Both: George R. Kadelak collection (BP 5-1929)

Shop Number 3333	-	Built for: Gingoog Tbr. Co., Inc.
{2,747th Lima Built Shay}

Built: 5-16-1929	Class: B 36-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 10
Gear Ratio: 2.05	Wheel Dia.: 29"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 39.5"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 14,315 Lbs.	Factor of Adhesion: 5.77	Maximum Safe Speed: 16.8
Fuel Type: Wood	Fuel Capacity: 1.5 Cords	Water Capacity: 1,200 Gallons	Empty Weight: As built 69,800
Owners: (Includes new data after 2018 Shay book completed) Pacific Commercial Co. (D), New York City, NY Gingoog Tbr. Co., Inc. #1, Gingoog, Misamis Oriental, U. S. Territory of the Philippines (8-21-1936) Anakan Lbr. Co., Gingoog, Misamis Oriental, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes: Lima records show engine lettered "Gingoog Tbr. Co., Inc." Engine originally entered for shipment to Santa Clara Lbr. Co., Manila, P. I.
