Lima Locomotive Works, Inc.

Photo Credit:

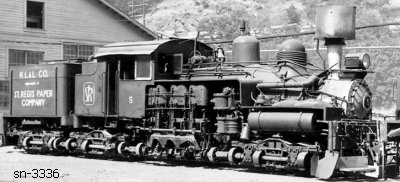

Left: by Sheridan Smith (3-1967)

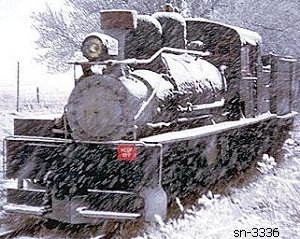

Right: by Dan Ranger (1963)
Shop Number 3336 - Built for: J. Neils Lbr. Co.
{2,750th Lima Built Shay}
Built:
5-15-1929
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
5.63
Maximum
Safe Speed:
15.1
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
120,400
Owners: (Includes new data after 2018 Shay book completed)
J. Neils Lbr. Co. #5, Libby, MT
(5-19-1939) J. Neils Lbr. Co., Klickitat Log & Lbr. Co. #5, Klickitat, WA
(1957) Klickitat Log & Lbr. Co. (St Regis Paper Co.) #5, Klickitat, WA
(1964) Black Hills Central RR (tourist) #5, Hill City, SD
(6-1965) Mid-Continent Museum #5, North Freedom, WI
(1967) Illinois RY Museum #5, Union, IL
(2002-2018) Under repairs and restoration
(11-2018) Operational at museum.
Disposition: (2002) under repairs, for 16-years
Additional Notes:
SLc Survivor List
