Lima Locomotive Works, Inc.

Photo Credit:
Jay Carlton collection

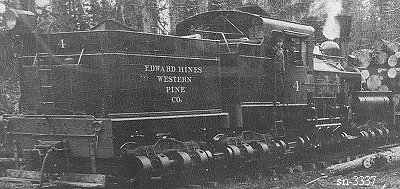

Shop Number 3337 - Built for: Edward Hines Western Pine Co.
{2,751st Lima Built Shay}
Built:
6-8-1929
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.78
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
148,400
Owners:
Edward Hines Western Pine Co. #4, Seneca, OR
(by 7-19-1929) Edward Hines Lbr. Co. #4, Seneca, OR
Disposition: (1960) Scrapped
Additional Notes: lettered: Edward Hines Western Pine Co.
sn-3337 did have a Worthington FWH, mounted where the air comp usually was.
