Lima Locomotive Works, Inc.


Photo Credit:

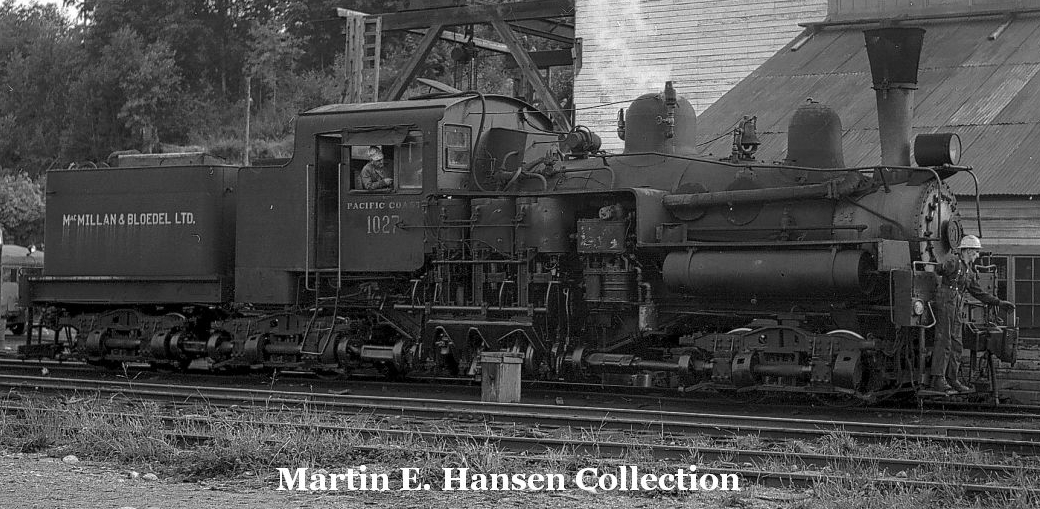

Top: Martin E. Hansen collection

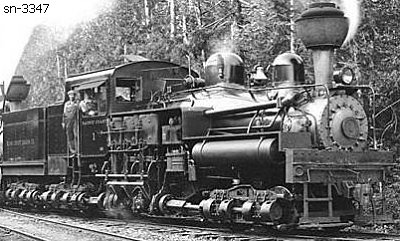

Bottom: Clark Kinsey
Shop Number 3347 - Built for: Lima Locomotive Works, Inc.
{2,761st Lima Built Shay}
Built:
4-5-1930
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
38,183 Lbs.
 Factor of
Adhesion:
4.97
 Maximum
Safe Speed:
17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
162,400
Owners:
Lima Locomotive Works, Inc., Lima, OH, built for stock
Mason County Log. Co., Black Hills & Northwestern RR #1 (2nd), Bordeaux, WA
(4-6-1942) Kosmos Tbr Co. #1 (2nd) later #10, Kosmos, WA
(4-16-1946) Bloedel, Stewart & Welch Ltd. #27, Franklin River, BC, CAN
(10-1-1951) MacMillan & Bloedel Ltd. #1027, Franklin River, BC, CAN
Disposition: (1959) Scrapped
Additional Notes:
