Lima Machine Works

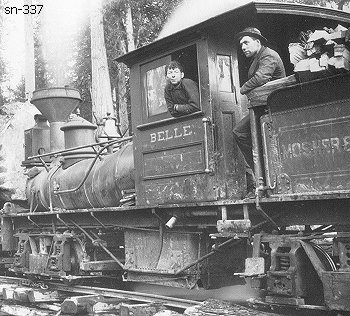

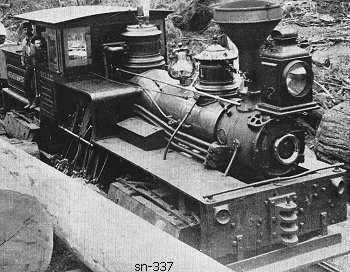

Photo Credit:
Left: Marc Reusser collection
Right: Seattle Historical Society
Shop Number 337 - Built for: Mosher & McDonald Log. Co.
{301st Lima Built Shay}
Built:
3-2-1891
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 30"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
7,713 Lbs.
Factor of
Adhesion:

6.76
Maximum
Safe Speed:

14.2
Fuel Type:
Coal
Fuel Capacity:
0.75 Tons
Water Capacity:
680 Gallons
Empty Weight:
As built
45,000
Owners:
Mosher & McDonald Log. Co. #1 "BELLE", Olympia, WA
(after 1896) Puget Log. Co., Glendale, WA
Disposition: Scrapped
Additional Notes: Shipped to Seattle WA
