Lima Machine Works

Photo Credit:
from The Whistles Blow No More by Hank Johnson

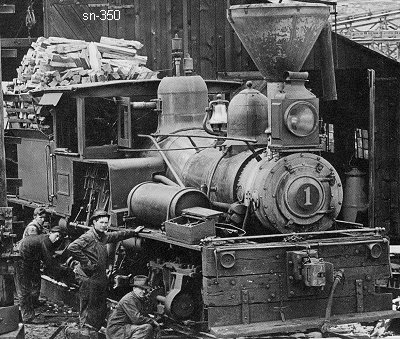

Shop Number 350 - Built for: Moore & Smith Lbr. Co.
{313th Lima Built Shay}
Built:
5-18-1891
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,179 Lbs.
Factor of
Adhesion:

4.65
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Ton
Water Capacity:
1,038 Gallons
Empty Weight:
As built
48,000
Owners:
Moore & Smith Lbr. Co. #1 "SEQUOIA", San Francisco, CA
Kings River Lbr. Co. #1, Sanger, CA
(1910) Hume-Bennett Lbr. Co. #1, Sanger, CA
(3-1917) Sanger Lbr. Co. #1, Sanger, CA
Disposition: (1929) Scrapped
Additional Notes:
