Lima Machine Works

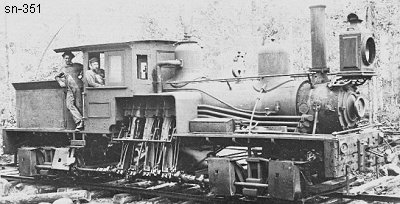

Photo Credit:
George R. Kadelak collection
Shop Number 351 - Built for: Joseph Dessert Lbr. Co.
{314th Lima Built Shay}
Built:
6-11-1891
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,762 Lbs.
 Factor of
Adhesion:
5.00
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
38,700
Owners:
Joseph Dessert Lbr. Co. #1, Mosinee, WI
Gayoso Lbr. Co., Parkin, AR
Farrell Loco. Works (D), Brinkley, AR *
Disposition: Scrapped
Additional Notes: * Owned by Dealer
