Lima Machine Works

Photo Credit:
Benjamine F. G. Kline Jr. collection

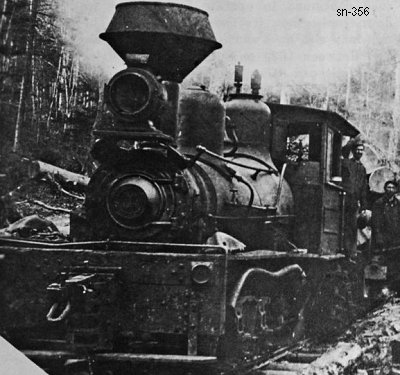

Shop Number 356 - Built for: C. B. Farr
{319th Lima Built Shay}
Built:
7-2-1891
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,433 Lbs.
Factor of
Adhesion:

3.89
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
61,650
Owners:
C. B. Farr, Tiadaghton & Fahnestalk RR #1, Tiadaghton, PA
(1897) Bayless Manufacturing Co., Austin, PA
(1899) Leetonia RY Co. #1, Leetonia, PA
(1903) Central Pennsylvania Lbr. Co. #56, Leetonia, PA
(c1911) Central Pennsylvania Lbr. Co. #56, Port Allegany, PA
Disposition: Scrapped 2-20-1929
Additional Notes:
