Lima Machine Works

Photo Credit:
Left: The Adirondack Experience
Right: George Kempher collection

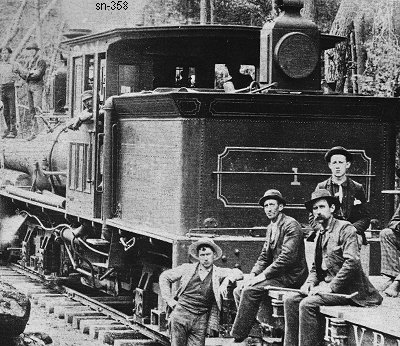

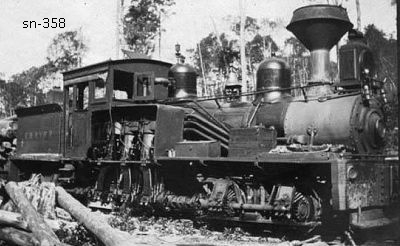

Shop Number 358 - Built for: C. B. Howard & Co.
{321st Lima Built Shay}
Built:
8-8-1891
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.056
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
22,417 Lbs.
Factor of
Adhesion:
4.84
Maximum
Safe Speed:
18.6
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
87,400
Owners:
C.B. Howard & Co., Emporium & Rich Valley RR #1 "OLD DAN", Emporium, PA
Southern Iron & Equip. Co.(D) #1298, Atlanta, GA
(7-3-1918) Dupont Lbr. Co. #3, Poplarville, MS
Gulf Pine Lbr. Co., Poplarville, MS
Disposition: Scrapped
Additional Notes:
