Lima Machine Works

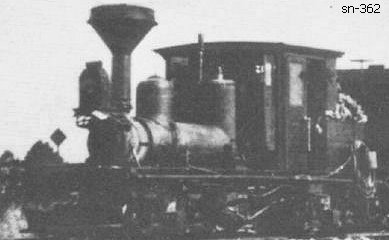

Photo Credit:
Left: Grace R. Bowman collection
Right: by Dave House (2009)
Shop Number 362 - Built for: Pioche Consolidated Mining & Reduction Co.
{325th Lima Built Shay}
Built:
6-25-1891
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.500
 Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,602 Lbs.
 Factor of
Adhesion:
4.58
 Maximum
Safe Speed:
10.5
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
232 Gallons
Empty Weight:
As built
16,200
Owners:
Pioche Consolidated Mining & Reduction Co., Pioche Pacific Transportation Co. #362 later 2, Pioche, NV
(6-1902) Nevada-Utah Mines & Smelting Corp., Pioche, NV
Disposition: Abondoned in desert
Additional Notes:
