Lima Machine Works

Photo Credit:
Lima Historical Society

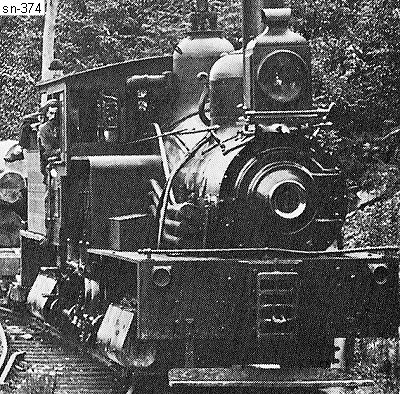

Shop Number 374 - Built for: W. S. Weed & Co.
{337th Lima Built Shay}
Built:
11-17-1891
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,433 Lbs.
 Factor of
Adhesion:
4.10
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,725 Gallons
Empty Weight:
As built
64,000
Owners:
W. S. Weed & Co., Glen Hazel & Shawmut RR #1, Glen Hazel, PA
Dry Fork Lbr. Co. #1, Laneville, WV
(1909) Parsons Pulp & Lbr. Co. #7, Laneville, WV
(10-1919) Whitmer-Parsons Pulp & Lbr. Co., #7, Laneville, WV
Disposition: Scrapped
Additional Notes:
