Lima Machine Works

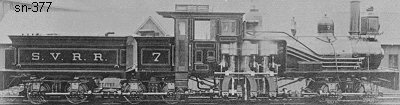

Photo Credit:
Baldwin-Lima-Hamilton Corp. collection (BP 2-1892)
Shop Number 377 - Built for: F. H. & C.W. Goodyear
{340th Lima Built Shay}
Built:
2-9-1892
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14 x 12
Gear Ratio:
2.056
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,587 Lbs.
Factor of
Adhesion:

4.83
Maximum
Safe Speed:

19.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,790 Gallons
Empty Weight:
As built
113,500
Owners:
F. H. & C.W. Goodyear, Sinnemahoning Valley RR #7, Austin, PA
Goodyear Lbr. Co. #7, Austin, PA
(1910) Potato Creek RR Co., Potato Creek RR #7, Norwich (Keating Summit), PA
Kendall Lbr. Co., Cheat Haven & Bruceton RR, Cheat Haven, PA
Disposition: Scrapped
Additional Notes: F. H. & C.W. Goodyear was Frank Henry and his brother, Charles Waterhouse Goodyear
