Lima Machine Works

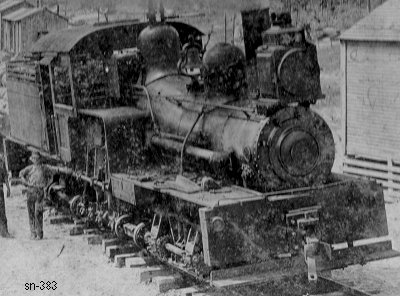

Photo Credit:
by Cecil Wayrick (c1912) from Gene Barron collection
Shop Number 383 - Built for: Trout Run RR
{346th Lima Built Shay}
Built:
4-4-1892
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,433 Lbs.
Factor of
Adhesion:

3.92
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
3.25 Cords
Water Capacity:
1,700 Gallons
Empty Weight:
As built
62,600
Owners:
Daniel Shepp, Trout Run RR #3, Cammal, PA
Oregon & Texas RR Co.#383, Cammal, PA
C. B. Howard & Co., Emporium & Rich Valley RR #3, Emporium, PA
(10-1903) Summit Lbr. Co. #1, Randolph, LA
Columbus Lbr. Co. #4, Columbus, MS
(9-1922) wrecked by a boiler explosion
Disposition: (6-1926) Scrapped at Steens, MS
Additional Notes:
