Lima Locomotive & Machine Co.

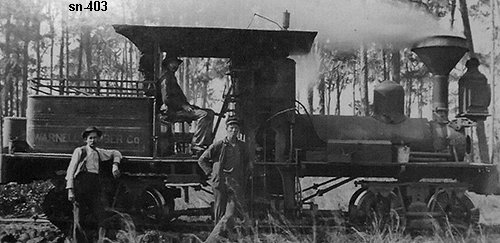

Photo Credit:
by unknown
Shop Number 403 - Built for: Warnell & Co.
{363rd Lima Built Shay}
Built:
7-22-1892
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
 Boiler:
[Style - Dia.]
Boot- 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
3.64
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
0.75 Ton
Water Capacity:
486 Gallons
Empty Weight:
As built
23,875
Owners:
Warnell & Co. #403, Panasoffkee, FL
Warnell Lbr. & Veneer Co. #1, Apopka, FL
The Collum-Cochran & Co., Taveres, FL
Disposition: Scrapped
Additional Notes:
