Lima Locomotive & Machine Co.

Photo Credit:
Samuel Heymun collection

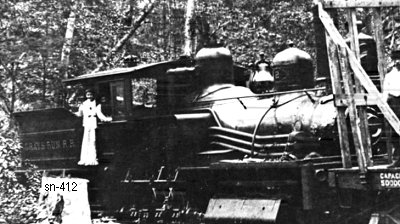

Shop Number 412 - Built for: Thomas E. Proctor Lbr. Co.
{371st Lima Built Shay}
Built:
10-6-1892
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,433 Lbs.
Factor of
Adhesion:

4.29
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
67,600
Owners:
Thomas E. Proctor Lbr. Co., Grays Run RR #2, Grays Run, PA
Keystone Lbr. Co. #2, Grays Run, PA
Central Pennsylvania Lbr. Co. #2, Grays Run, PA
Disposition: Scrapped
Additional Notes:
