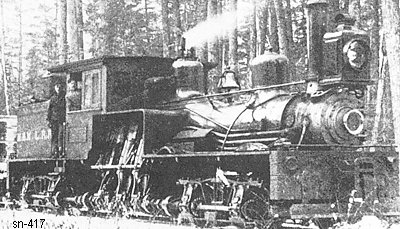

Lima Locomotive & Machine Co.

Photo Credit:
Frank A. King collection

Shop Number 417	-	Built for: Mitchell & McClure
{375th Lima Built Shay}

Built: 11-26-1892	Class: B 28-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 10
Gear Ratio: 2.05	Wheel Dia.: 28.5"	Gauge: std.	Boiler: [Style - Dia.] W.T. - 36"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 12,947 Lbs.	Factor of Adhesion: 4.39	Maximum Safe Speed: 16.5
Fuel Type: Coal	Fuel Capacity: 1.75 Tons	Water Capacity: 900 Gallons	Empty Weight: As built 45,000
Owners: Mitchell & McClure, Mitchell & McClure Log. RR #4, Duluth, MN John Hein & Co., Tony & Northeastern RY, Tony, WI Helena, Parkin & Northern RY, Parkin, AR Lansing Wheelbarrow Co., Parkin, AR (8-17-1918) Little Rock Lbr. & Mfg. Co., Natural Steps [Retting], AR (9-29-1926) Bemberg & Son Iron Works (D), Little Rock, AR * (12-17-1926) Farrell Machine Works, Brinkley, AR (D) *
Disposition: Scrapped
Additional Notes: * Owned by Dealer
