Lima Locomotive & Machine Co.

Photo Credit:
Walter Casler collection

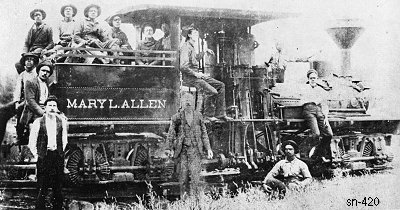

Shop Number 420 - Built for: A. B. Allen & Co.
{378th Lima Built Shay}
Built:
12-1-1892
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
3.71
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
486 Gallons
Empty Weight:
As built
25,000
Owners:
A. B. Allen & Co. #92, "MARY L. ALLEN", Sterrett, AL
Disposition: Scrapped
Additional Notes: This Shay did not operate on the Allen Lbr. Co. tracks, the other lines of A. B. Allen & Co.
