Lima Locomotive & Machine Co.

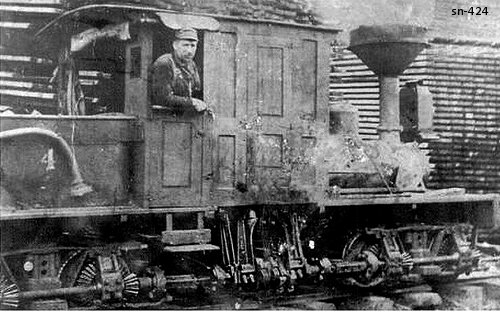

Photo Credit:
by unknown
Shop Number 424 - Built for: Gondola Tanning Co.
{382nd Lima Built Shay}
Built:
12-17-1892
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
22"
Gauge:
42"
 Boiler:
[Style - Dia.]
Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,602 Lbs.
 Factor of
Adhesion:
4.13
 Maximum
Safe Speed:
10.5
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
200 Gallons
Empty Weight:
As built
17,000
Owners:
Gondola Tanning Co. #424, Grapeville, PA
[36"] W. M. Ritter Lbr. Co., #4 (1st), Hampton, TN
(5-1919) Industrial Equip. Co.(D), Chicago, IL *
Disposition: Scrapped
Additional Notes: * Owned by Dealer
