Lima Locomotive & Machine Co.

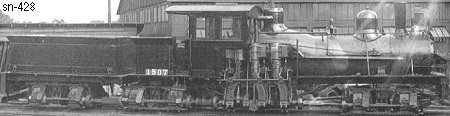

Photo Credit:
George Kadelak collection (c1922)
Shop Number 428 - Built for: Lackawanna Lbr. Co.
{386th Lima Built Shay}
Built:
8-28-1893
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
35"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
175
 Tractive Effort:
29,093 Lbs.
 Factor of
Adhesion:
5.08
 Maximum
Safe Speed:
20.3
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,700 Gallons
Empty Weight:
As built
118,800
Owners:
Lackawanna Lbr. Co. #2, Mina, PA
Laurel Mfg. Co., Fenwick, WV
Southern Iron & Equip. Co.(D) #1507, Atlanta, GA
(7-18-1922) Kentucky Lbr. Co. #7, Sulligent, AL
(5-4-1928) For Sale
Disposition: Scrapped
Additional Notes:
