Lima Locomotive & Machine Co.

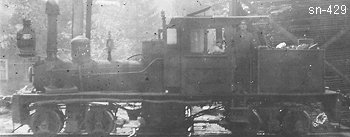

Photo Credit:
Left: Walter Casler collection
Right: Mrs. Brothers collection
Shop Number 429 - Built for: Collins & Watson
{387th Lima Built Shay}
Built:
1-1-1893
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
2.176
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
7,095 Lbs.
Factor of
Adhesion:

4.86
Maximum
Safe Speed:

14.5
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
585 Gallons
Empty Weight:
As built
29,000
Owners:
Collins & Watson #2, Nebraska, PA
(1-24-1921) Salmon Creek Lbr. Co., Sheffield and Tionesta #2, Kellettville, PA
Disposition: (1941) Scrapped
Additional Notes:
