Lima Locomotive & Machine Co.

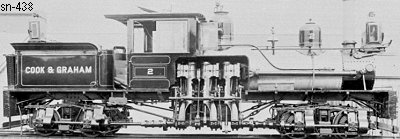

Photo Credit:
Left: by A. W. Cook Jr.
Right: George Kadelak collection
Shop Number 438 - Built for: F. A. Blackwell
{396th Lima Built Shay}
Built:
5-30-1893
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29.75"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,403 Lbs.
Factor of
Adhesion:

5.23
Maximum
Safe Speed:

17.3
Fuel Type:
Coal
Fuel Capacity:
2.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
50,000
Owners:
F. A. Blackwell (Howard & Pearly Lbr. Co.), North Bend & Kettle Creek RR #2, Gleasonton, PA
North Bend & Kettle Creek RR #2, North Bend, PA
Cook & Graham Lbr. Co., Brookville RR #2, Brookville, PA
A. W. Cook & Co., Brookville RR #2, Brookville, PA
Glady Fork Lbr. Co., Glady Fork, WV
Disposition: Scrapped
Additional Notes:
