Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

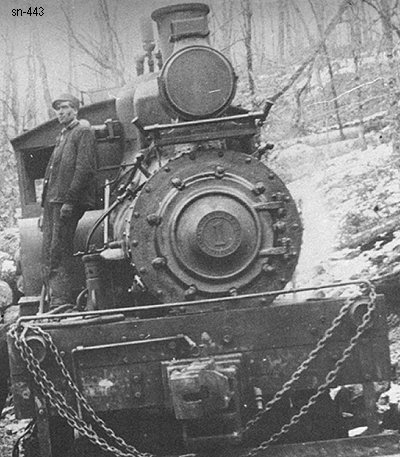

Shop Number 443 - Built for: Buckhannon River Lbr. Co.
{400th Lima Built Shay}
Built:
5-3-1893
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.25"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,145 Lbs.
Factor of
Adhesion:

3.64
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
780 Gallons
Empty Weight:
As built
38,000
Owners:
Buckhannon River Lbr. Co. #4, Buckhannon, WV
(1901) Condon-Lane Boom & Lbr. Co. #1, Horton, WV
(1909) Parsons Pulp & Lbr. Co. #1 (1st), Horton, WV
Disposition: Scrapped
Additional Notes:
