Lima Locomotive & Machine Co.

Photo Credit:
George Kadelak collection (1912)

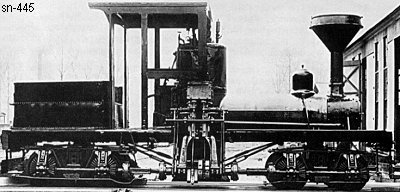

Shop Number 445 - Built for: R. S. Phillips
{402nd Lima Built Shay}
Built:
6-17-1893
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,602 Lbs.
Factor of
Adhesion:

3.88
Maximum
Safe Speed:

10.5
Fuel Type:
Wood
Fuel Capacity:
0.33 Tons
Water Capacity:
232 Gallons
Empty Weight:
As built
15,700
Owners:
Southern Equip. Co. (D), Monarch, MS; For:
R. S. Phillips #445, "CHARLIE", Ellisville, MS
(1908) Floyd-Lyons Lbr. Co., Narkeeta, MS
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(8-14-1912) W. M. Carter Lbr. Co., Laurel, MS
(5-1913) J. H. Bostick, Ellisville Junction, MS
(1919) Monarch Lbr. Co. #1, Monarch, MS
Monarch Lbr. Co. #1,McLain, MS
(5-4-1920) Long Branch Lbr. Co. #1, Tucker's Crossing
(5-15-1926) W. M. Tomlin Lbr. Co. #1, Buckatunna, MS
(12-17-1928) Brownlee Lbr. Co., Chickasaw, AL
Disposition: Scrapped
Additional Notes:
