Lima Locomotive & Machine Co.

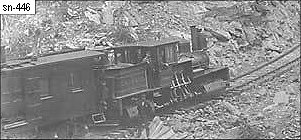

Photo Credit:
by Milton B. Smith
Shop Number 446 - Built for: The Log Mountain Coal, Coke & Tbr. Co.
{403rd Lima Built Shay}
Built:
9-28-1893
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,179 Lbs.
Factor of
Adhesion:

4.57
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
2.75 Tons
Water Capacity:
900 Gallons
Empty Weight:
As built
46,600
Owners:
The Log Mountain Coal, Coke & Tbr. Co., Cumberland River and Tennessee RR #446, Pineville, KY
(9-28-1901) Louisville & Nashville RR #1200 (1st), Louisville, KY
Natalbany Lbr. Co., New Orleans, Natalbany & Natchez RR, Natalbany, LA
(1911) wrecked and scrapped at Natalbany, LA
Disposition: (1911) Scrapped at Natalbany, LA
Additional Notes:
