Lima Locomotive & Machine Co.

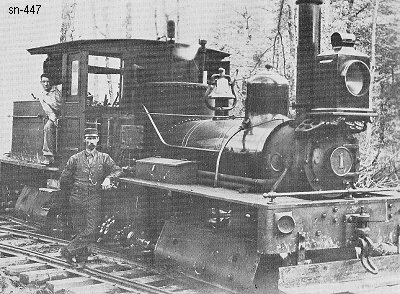

Photo Credit:
G. E. Sigworth collection
Shop Number 447 - Built for: Wagner & Wilson
{404th Lima Built Shay}
Built:
7-25-1893
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
2.176
Wheel Dia.:
26.625"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot- 44"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,061 Lbs.
 Factor of
Adhesion:
4.75
 Maximum
Safe Speed:
14.5
Fuel Type:
Coal
Fuel Capacity:
0.75 Ton
Water Capacity:
580 Gallons
Empty Weight:
As built
27,500
Owners:
Wagner & Wilson, Millstone Valley RR #1, Marienville, PA
(4-20-1903) Mud Lake Lbr. Co., Raber, MI
(1913) Murner & Crego, Raber, MI
(3-4-1920) Walter A. Zelnicker Supply Co. (D), St. Louis, MO *
Disposition: (12-30-1924) Scrapped by Zelnicker Supply Co.
Additional Notes: * Owned by Dealer
