Lima Locomotive & Machine Co.

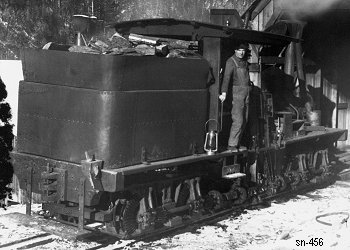

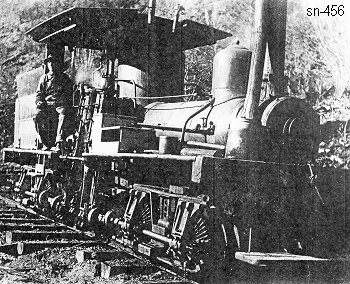

Photo Credit:
Both: Mineral County Museum collection
Shop Number 456 - Built for: Montana Gold Placer Mining Co.
{411th Lima Built Shay}
Built:
9-6-1893
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
7,813 Lbs.
Factor of
Adhesion:

3.78
Maximum
Safe Speed:

10.1
Fuel Type:
Wood & Coal
Fuel Capacity:
.75 Cords / .7 Tons
Water Capacity:
486 Gallons
Empty Weight:
As built
23,200
Owners:
Montana Gold Placer Mining Co., (A.D. Wright) #456, Quartz, MT
Disposition: (4-30-1926) Scrapped
Additional Notes:
