Lima Locomotive & Machine Co.

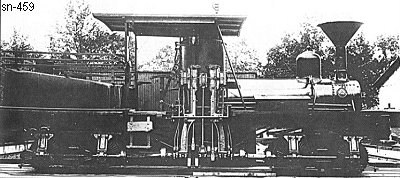

Photo Credit:
Birmingham Rail & Locomotive Company Archives (1903)
Shop Number 459 - Built for: Page Lbr. Co.
{414th Lima Built Shay}
Built:
10-11-1893
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
3.46
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
486 Gallons
Empty Weight:
As built
23,000
Owners:
Page Lbr. Co. #459, Aberdeen, NC; For:
Thomas D. Hall #459, Eagle Springs, NC
(3-5-1895) Hall Tramroad Co. #1, Eagle Springs, NC
(4-1896) Francis M. Monroe #1, Eagle Springs, NC
(4-1897) Thomas M. Hall #1, Eagle Springs, NC
(c1899) Moore County RR #1, Aberdeen, NC
(c1903) Southern Iron & Equip. Co. (D) #208, Atlanta, GA *
(9-1903) H. T. Simms Lbr. Co., Elmore, AL
(5-1905) Zeigler Lbr. Co., Elmore, AL
Cohn & Goldberg Lbr. Co., Elmore, AL
Birmingham Rail & Loco. Co. (D), Birmingham, AL *
(12-16-1911) Glynn Planting Co., Glynn, LA
Disposition: Scrapped
Additional Notes: * Owned by Dealer
