Lima Locomotive & Machine Co.

Photo Credit:
University of Michigan Engineering & Transportation Library

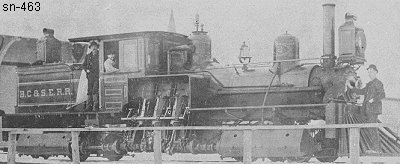

Shop Number 463 - Built for: Boyne City & Southeastern RR
{417th Lima Built Shay}
Built:
7-16-1894
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
15,188 Lbs.
 Factor of
Adhesion:
3.80
 Maximum
Safe Speed:
13.2
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
900 Gallons
Empty Weight:
As built
47,000
Owners:
Boyne City & Southeastern RR Co., Boyne City & Southeastern RR #2, Boyne City, MI
Boyne City, Gaylord & Alpena RR Co., Boyne City, Gaylord & Alpena RR #5, Boyne City, MI
Curry & Bittner Lbr. Co., Mabie, WV
Disposition: Scrapped
Additional Notes:
