Lima Locomotive & Machine Co.

Photo Credit:
drawing by G. W. Bryck

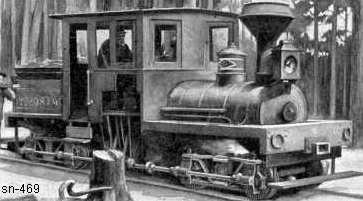

Shop Number 469 - Built for: The Florida Development Co.
{423rd Lima Built Shay}
Built:
11-17-1894
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
22"
Gauge:
42"
Boiler:
[Style - Dia.]
Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,602 Lbs.
 Factor of
Adhesion:
3.95
Maximum
Safe Speed:
10.5
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
232 Gallons
Empty Weight:
As built
16,000
Owners:
The Florida Development Co. #5 "ANNA", Avon Park, FL
A. V. Miller, Nida (Cass), WV
Disposition: Scrapped
Additional Notes:
Shipped to Bowling Green FL and over nine days, moved 23 miles cross country to Avon Park,
over wood rail beams relaid in front as the loco advanced.
