Lima Locomotive & Machine Co.

Photo Credit:
C. L. Collom collection
Shop Number 471 - Built for: Henry Schimmelfeng & Co.
{425th Lima Built Shay}
Built:
6-30-1894
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9.25 x 8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,117 Lbs.
Factor of
Adhesion:

5.32
Maximum
Safe Speed:

14.5
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
42,000
Owners:
Henry Schimmelfeng & Co. #471, Instanter, PA
(1904) New York & Pennsylvania Co., Rolfe RY #3, Johnsonburg, PA
(2-3-1919) New York & Pennsylvania Co., Rolfe RY #8, Wilcox, PA
(7-29-1920) Castanea Paper Co. #8, Wilcox, PA
Disposition: undetermined

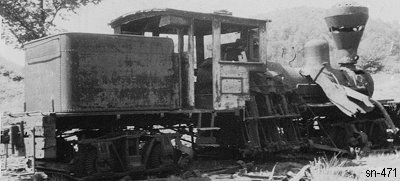

Additional Notes: (1936) Photo shows about scrap in Wilcox, PA
