Lima Locomotive & Machine Co.

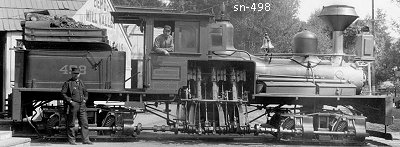

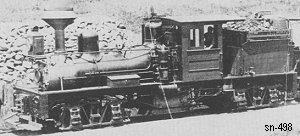

Photo Credit:
Left: Baldwin-Lima-Hamilton Corporation
Right: Martin E. Hansen collection
Shop Number 498 - Built for: Usal Redwood Co.
{449th Lima Built Shay}
Built:
1-23-1896
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 – 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,777 Lbs.
 Factor of
Adhesion:
3.58
Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
780 Gallons
Empty Weight:
As built
39,500
Owners:
Usal Redwood Co., Usal RR, #498, Rockport, CA
Dollar Lbr. Co., CA
(3-4-1896) Mill Valley & Mt. Tamalpais Scenic RY #498, Mill Valley, CA
(1904) Tenino Lbr. Co., Tenino, WA
(10-18-1920) Coal Creek Lbr. Co., Chehalis, WA
(8-6-1921) Lacamas Log. Co. #1, Chehalis, WA
George Veness, Winlock, WA
Zimmerman, Wells & Brown (D), Portland, OR
(9-25-1925) Marcilla Lbr. Co., Chehalis, WA
Disposition: (1928) Scrapped
Additional Notes: Shipped to: San Francisco, CA
