Lima Locomotive & Machine Co.

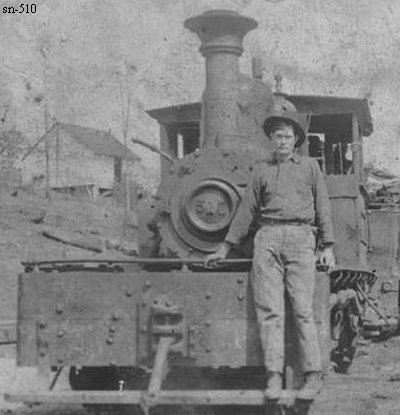

Photo Credit:
Alabama Department of Archives & History
Shop Number 510 - Built for: Gregory-Coe Lbr. Co.
{461st Lima Built Shay}
Built:
7-23-1896
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26.9375"
Gauge:
40"
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
8,813 Lbs.
 Factor of
Adhesion:
5.51
 Maximum
Safe Speed:
14.7
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
780 Gallons
Empty Weight:
As built
38,700
Owners:
Gregory-Coe Lbr. Co. #510 "KENT", Stanton, AL
(1909) [41"] E. E. Jackson Lbr. Co., Riderville, Centerville & Blockton RR #510, Riderville, AL
Disposition: (1916) Scrapped at Riderville, AL
Additional Notes:
