Lima Locomotive & Machine Co.

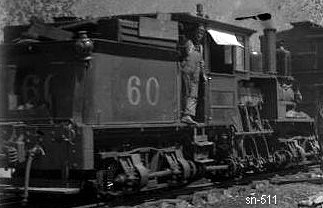

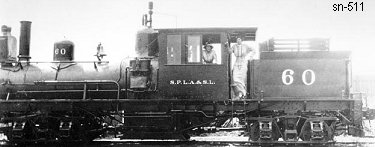

Photo Credit:
Left: Union Pacific Railroad Museum collection
Right: by William Edward Hook (9-1904)
Shop Number 511 - Built for: J. A. Cunningham
{462nd Lima Built Shay}
Built:
6-6-1896
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
17,197 Lbs.
Factor of
Adhesion:

3.80
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
54,350
Owners: (Includes new data after 2018 Shay book completed)
J. A. Cunningham, New East Tintic RY #10 "ALIE", Mammoth, UT
(11-28-1900) Oregon Short Line RR, New East Tintic RY #10, Mammoth, UT
(6-18-1903) San Pedro, Los Angeles & Salt Lake RR #60, Tintic, UT
(4-1904 to 9-1904) Used in Newhouse UT to construct track from Frisco UT to Newhouse, UT
(1916) Los Angeles & Salt Lake RY #60, Tintic, UT
(11-1918) Lincoln Creek Lbr. Co. #60, Galvin, WA
Disposition: (1928) Scrapped
Additional Notes: (4-1904) SPLA&SL contracted for the construction of the Newhouse Extension, Newhouse, Copper Gulch & Sevier Lake RR
