Lima Locomotive & Machine Co.

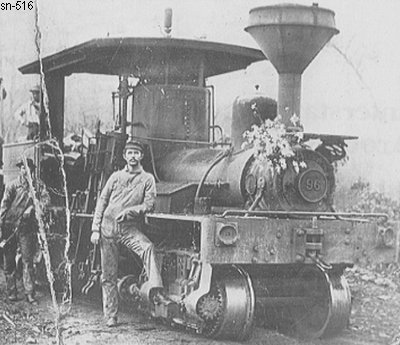

Photo Credit:
Joyce collection
Shop Number 516 - Built for: Allen Lbr. Co.
{467th Lima Built Shay}
Built:
6-16-1896
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
3.73
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
0.7 Tons
Water Capacity:
486 Gallons
Empty Weight:
As built
24,800
Owners:
Allen Lbr. Co. #96 "WADE HAMPTON", Sterrett, AL
(1912) Kytle Brothers Lbr. Co., Talladega Springs, AL
(1922) Empire Lbr. Co. #1, Westover, AL
Disposition: (11-1927) Scrapped at Westover, AL
Additional Notes: (10-3-27) Not in use and considering selling for junk price
