Lima Locomotive & Machine Co.

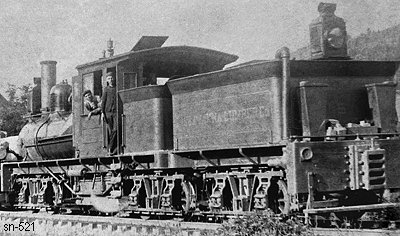

Photo Credit:
Thomas T. Taber, III collection
Shop Number 521 - Built for: Lackawanna Lbr. Co.
{471st Lima Built Shay}
Built:
9-26-1896
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32.125"
Gauge:
std
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,072 Lbs.
 Factor of
Adhesion:
4.86
 Maximum
Safe Speed:
17.3
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
93,000
Owners:
Lackawanna Lbr. Co. #5, Mina, PA
Pennsylvania Stave Co., Oleona RR #5, Cross Fork, PA
(1913) Homochitto Lbr. Co. #5 later 21, Bude, MS
Disposition: (1928) Scrapped
Additional Notes:
