Lima Locomotive & Machine Co.

Photo Credit:
by unknown

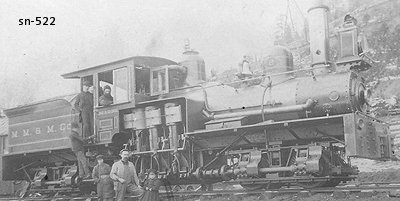

Shop Number 522 - Built for: Morning Mining & Milling Co.
{472nd Lima Built Shay}
Built:
10-21-1896
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32.125"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,227 Lbs.
Factor of
Adhesion:

4.36
Maximum
Safe Speed:

17.3
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
68,000
Owners:
Morning Mining & Milling Co. #2 "JNO. S. GEORGE", Mullan, ID
(1-22-1921) [Std.] Puget Sound Mills & Tbr, Co. #8, Twin, WA {Mill at Port Angeles, camps at Majestic, Murdock Creek, Twin}
(10-1-1925) The Charles Nelson Co. #8, Piedmont, WA
The Charles Nelson Co. #8, Sol Duc, WA
(2-10-1931) Hofius Steel & Equip. Co.(D), Seattle, WA *
Leased to: Portland RY, Light & Power Co., Estacada, OR
Disposition: (1931) Scrapped
Additional Notes: * Owned by Dealer
