Lima Locomotive & Machine Co.

Photo Credit:
Thomas T. Taber collection

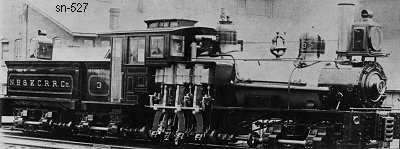

Shop Number 527 - Built for: F. A. Blackwell
{477th Lima Built Shay}
Built:
5-3-1897
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14 x 14
Gear Ratio:
2.056
Wheel Dia.:
32.9375"
Gauge:
std
Boiler:
[Style - Dia.]
W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
34,427 Lbs.
 Factor of
Adhesion:
3.78
 Maximum
Safe Speed:
19.1
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,700 Gallons
Empty Weight:
As built
116,000
Owners:
F. A. Blackwell, North Bend & Kettle Creek RR #3, Gleasonton, PA
W. F. Webb, Allendale, PA
Southern Iron & Equip. Co.(D) #870, Atlanta, GA
(12-1913) Scotch Lbr. Co., Alabama & Tombigbee RR #11, Fulton, AL
Disposition: Scrapped
Additional Notes: New boiler 7-10-25
* Owned by Dealer
