Lima Locomotive & Machine Co.

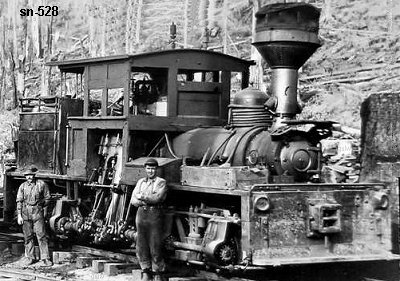

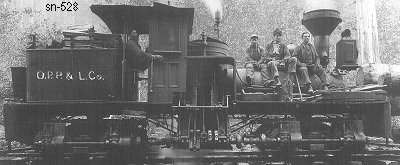

Photo Credit:
Above: Sandy Historical Museum collection
Right: David Thomas collection
Shop Number 528 - Built for: Benson Log. & Lumbering Co.
{478th Lima Built Shay}
Built:
3-8-1897
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.44"
Gauge:
std.
Boiler:
[Style - Dia.]
Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
10,036 Lbs.
 Factor of
Adhesion:
3.69
 Maximum
Safe Speed:
10.2
Fuel Type:
Coal
 Fuel Capacity:
1.75 Tons
Water Capacity:
585 Gallons
Empty Weight:
As built
31,000
Owners:
Benson Log. & Lumbering Co. #528, Oak Point, WA
(3-31-1904) Oak Point Piling & Lbr. Co. #1 "OLD RUSTY", Oak Point, WA
Standard Box & Lbr. Co. #1, Buxton, OR
(12-16-1920) Devitt Lbr. Co., Devitt, OR
(6-10-1923) Mowry Log. Co. #1, Glenwood, OR
(8-31-1924) Shanghi Building Co. #1, Devitt, OR
Disposition: (1931) Scrapped
Additional Notes: Later converted to wood burner
