Lima Locomotive & Machine Co.

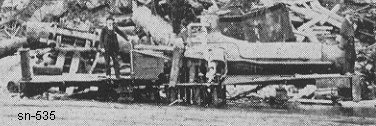

Photo Credit:
by Bob Ely
Shop Number 535 - Built for: Otter Creek Boom & Lbr. Co.
{483rd Lima Built Shay}
Built:
8-26-1897
Class:
B
25-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
2.176
Wheel Dia.:
28.312"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,625 Lbs.
Factor of
Adhesion:

5.26
Maximum
Safe Speed:

15.5
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
900 Gallons
Empty Weight:
As built
44,000
Owners:
Otter Creek Boom & Lbr. Co. #3, Hulings, WV
Otter Creek Boom & Lbr. Co. #3, Hambleton, WV
Manganese Products Co., Sugar Grove, VA
Chicago Brick Co., (?loc)
Southern Iron & Equip. Co.(D) #1726, Atlanta, GA
(6-7-1922) D. L. Fair Lbr. Co. #1, Louisville, MS
Disposition: (After 10-25-1927) Scrapped
Additional Notes: new firebox 4-10-1913
