Lima Locomotive & Machine Co.

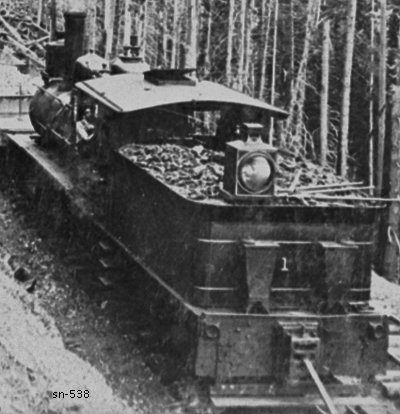

Photo Credit:
A.C.H.S. Museum, Lima Ohio
Shop Number 538 - Built for: Larson & Greenough
{486th Lima Built Shay}
Built:
11-6-1897
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32.25"
Gauge:
36"
 Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
23,979 Lbs.
 Factor of
Adhesion:
4.07
Maximum
Safe Speed:
17.4
Fuel Type:
Coal
Fuel Capacity:
3.8 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
75,000
Owners:
Larson & Greenough #1, Mullen, ID
(1-22-1921) [Std.] Puget Sound Mills & Tbr. Co. #1, Twin, WA {Mill at Port Angeles, camps at Majestic, Murdock Creek, Twin}
Hofius Steel & Equip. Co.(D), Seattle, WA
(12-14-1923) Leased to: Security Log. Co., Carnation, WA
(10-8-1924) Washington Lbr. & Spar Co. #1 later #5, Darrington, WA
(2-25-1928) J. A. Fortier (D), Seattle, WA *
Disposition: (1931) Scrapped
Additional Notes: * Owned by Dealer
